Centering Pilot Holes On 2x4 Or 2x6 Framing Lumber

Parametric, print-ready STL models for centering pilot holes on 2x4 or 2x6 framing lumber. Support-free, oriented STL. Commercial license with StreamSolid Pro. The standard size is a free download, no account needed.

1 model

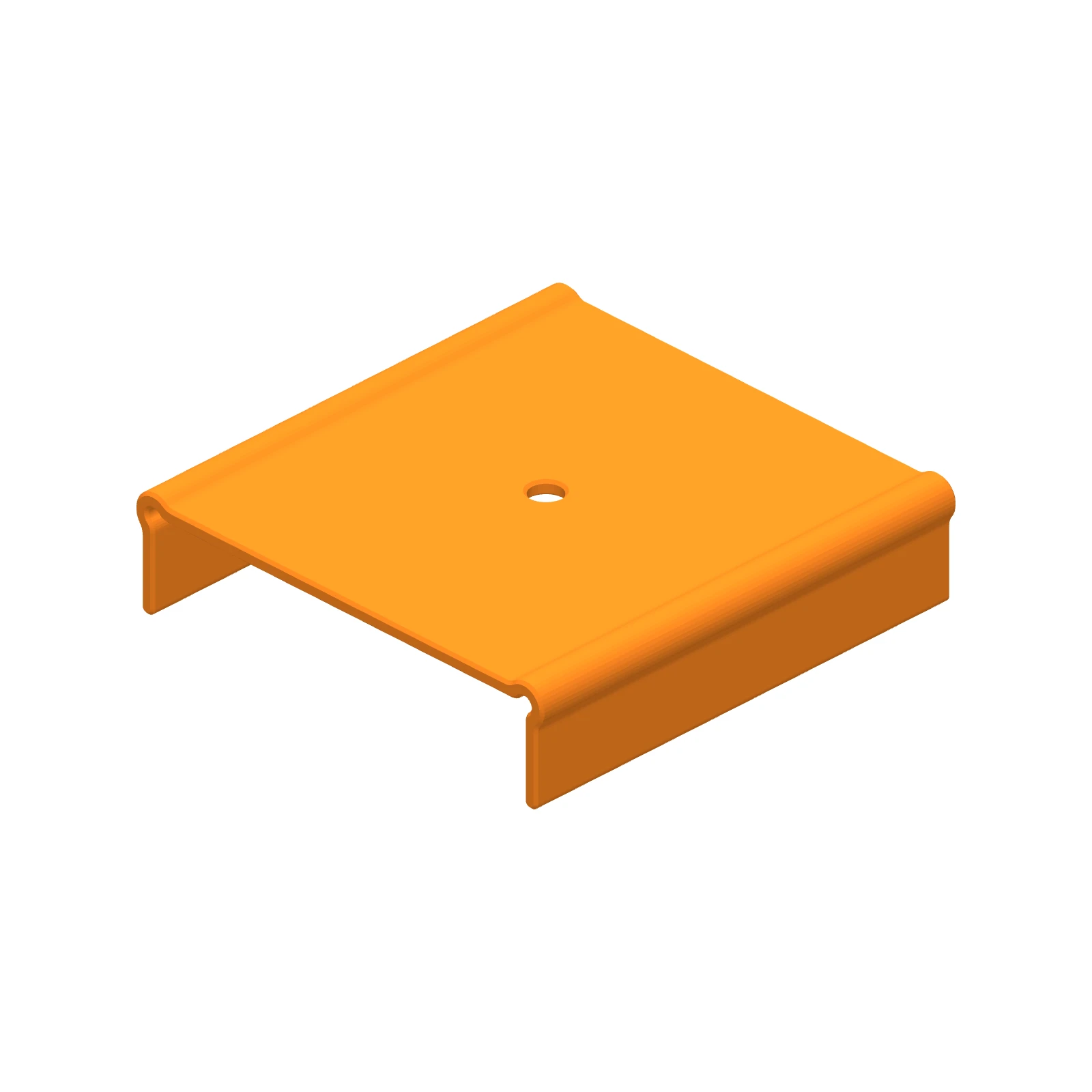

Board Center Jig

A U-shaped jig that clips onto trim, a 2x4, a 2x6, or other lumber and locates a drill hole on center. Stock size is the actual face the jig hugs (3-1/2 in for a 2x4). Hole diameter is the drill. The CAD already includes 0.2 mm clearance on the opening and the hole.
